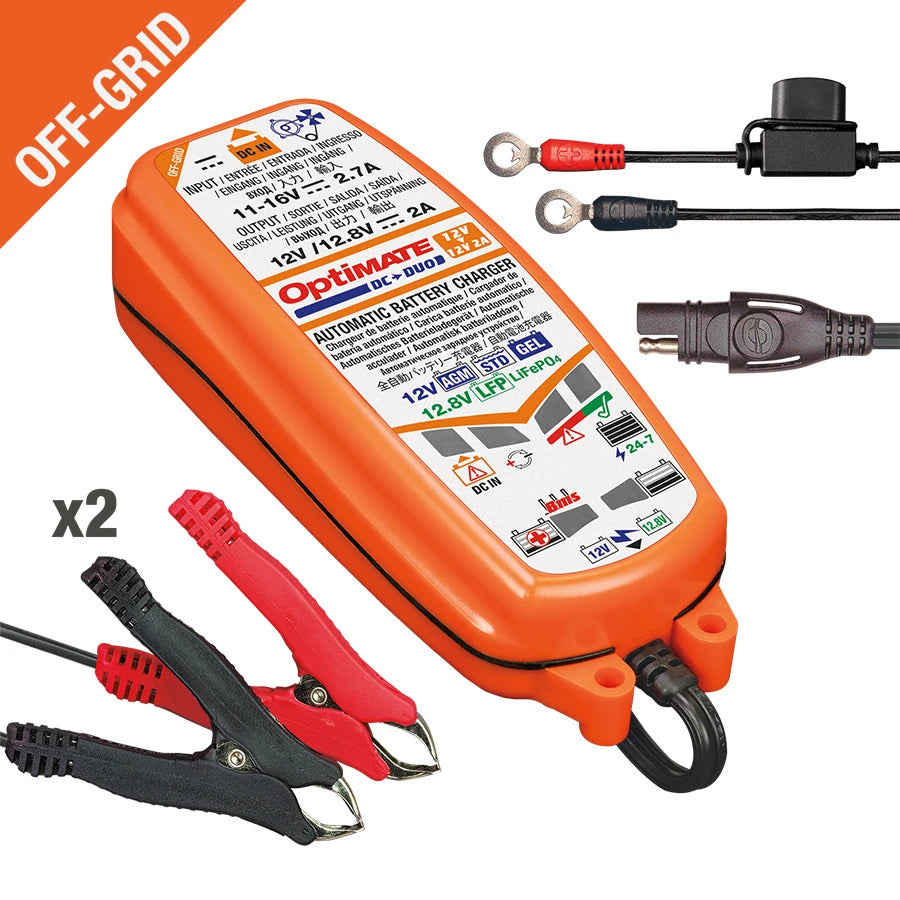

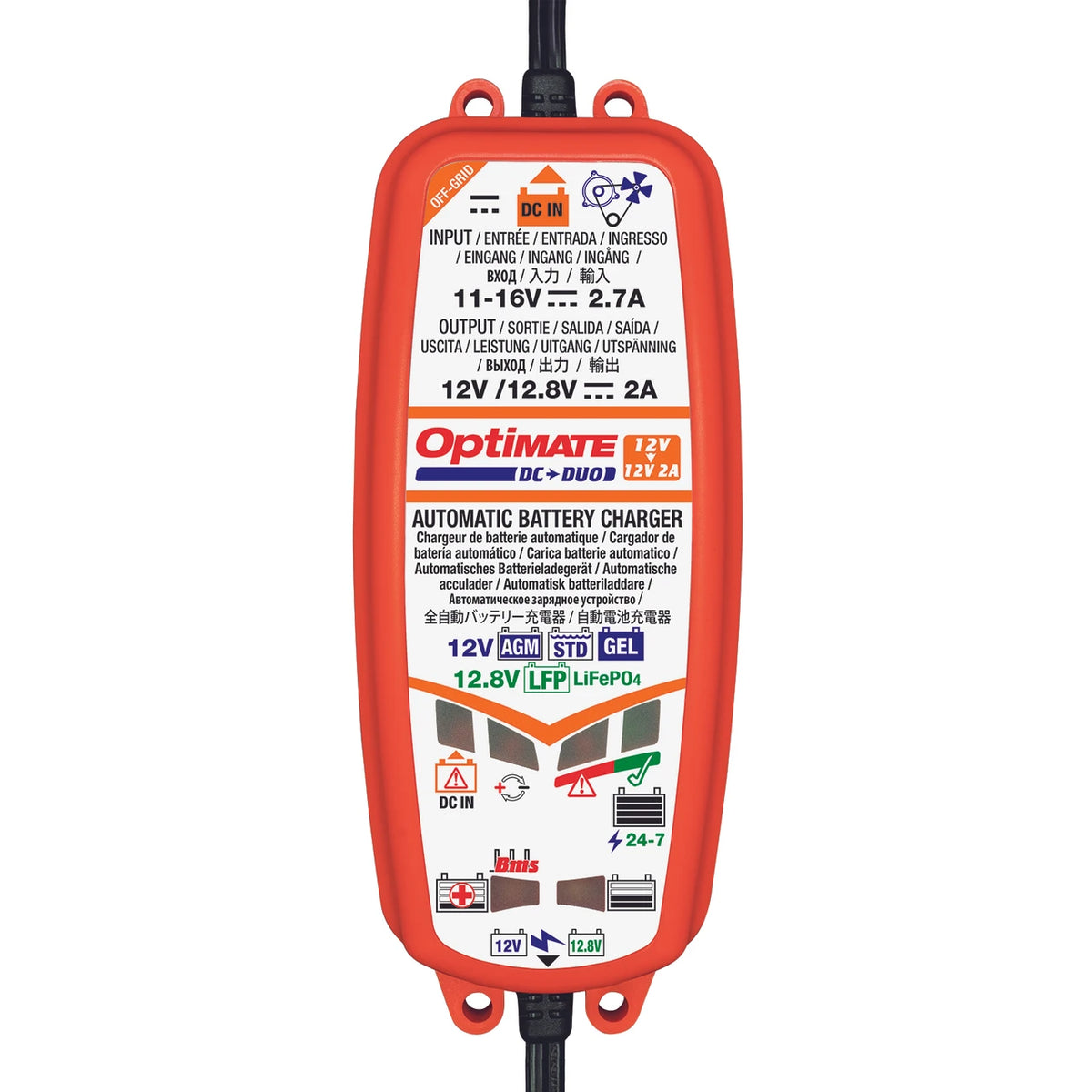

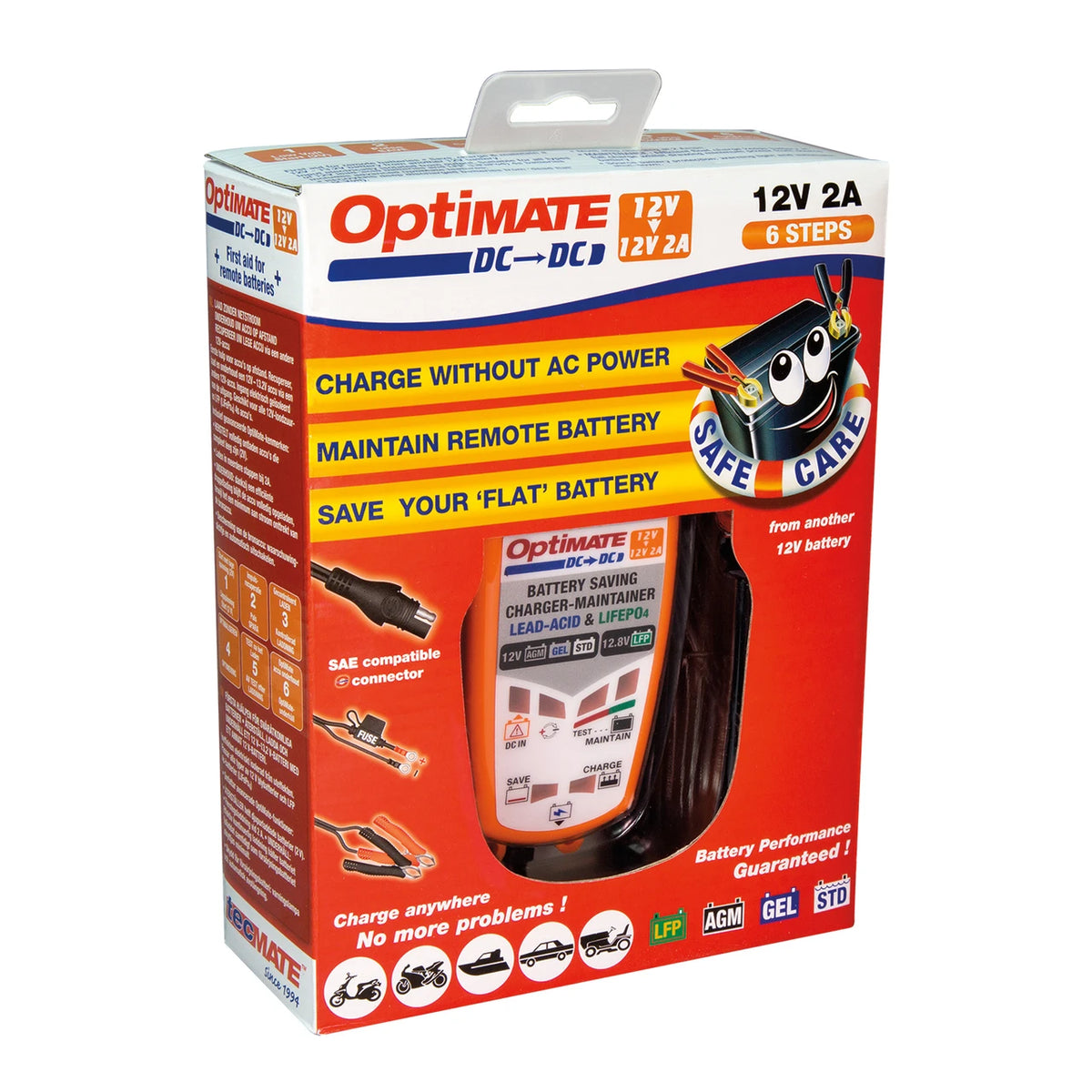

OptiMate DC-DC 12V Battery Charger & Optimiser OPTDC

Maintain your battery where mains power can’t reach. The OptiMate DC-DC draws power from a charged 12V source battery to recover, charge and maintain another compatible battery, making it a practical option for storage locations without an AC supply.

Its fully automatic six-step programme adapts to compatible lead-acid and LiFePO4 lithium batteries, delivering a constant 2A charging current. Source battery protection provides a low-battery warning and automatic shut-down to help prevent excessive discharge of the battery supplying the power.

Features and specifications

• Suitable for 12V STD, AGM and GEL lead-acid batteries from 6Ah
• Suitable for 12.8V/13.2V LiFePO4/LFP lithium batteries from 2Ah
• Battery-to-battery charging with no AC mains supply required
• Constant 2A charging current
• Low-voltage recovery starting from 2V
• BMS wake-up function for lithium batteries in sleep or deep-discharge protection mode
• Six-step recovery, charging, testing and maintenance programme
• Source battery low-voltage warning and automatic shut-down
• 12–16V DC input, drawing up to 2.7A
• IP54 weatherproof housing with wall-mounting points
• 180cm charging lead with SAE connector
• Automatic shut-down if short-circuited or disconnected

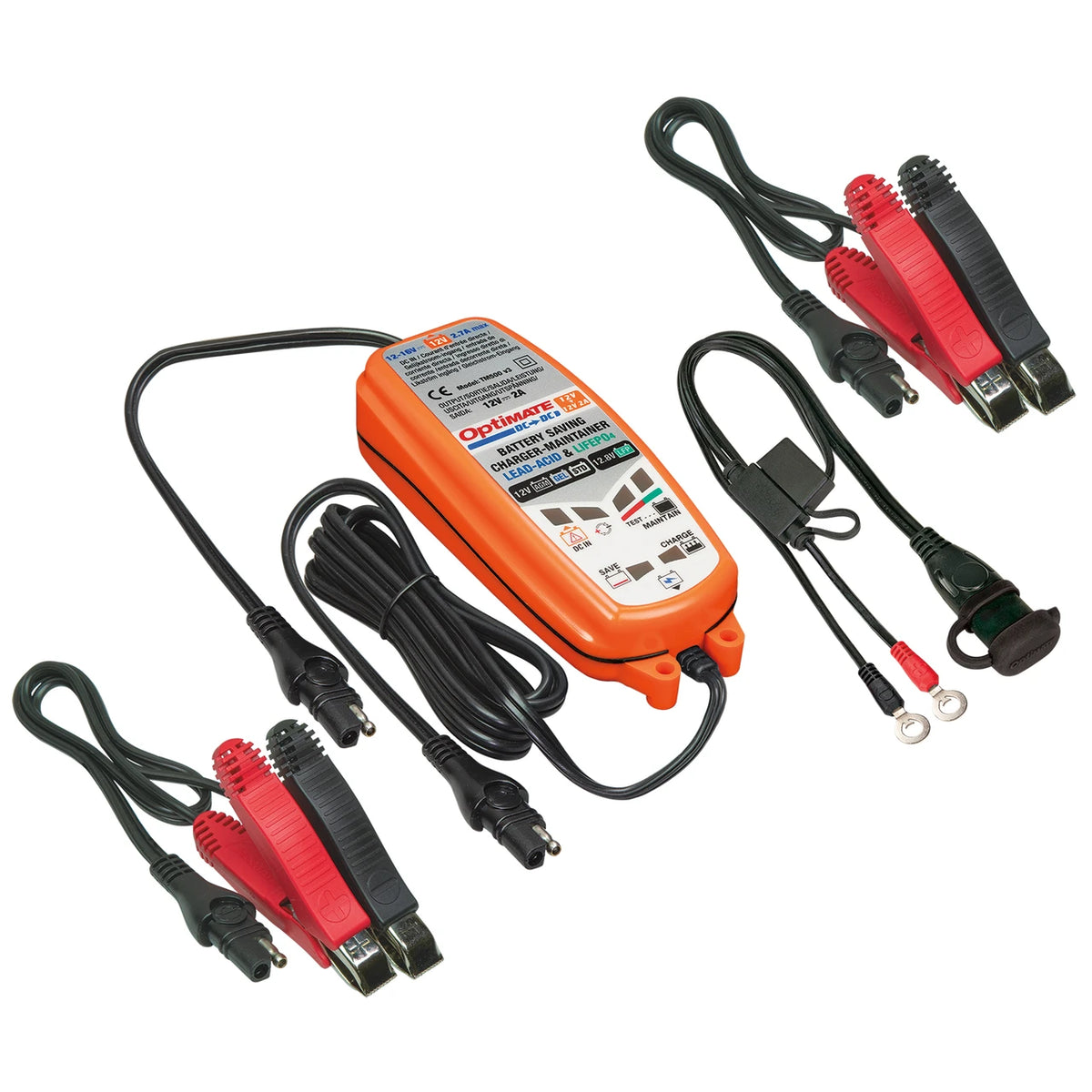

Included

Fused battery clip set, standard battery clip set and weatherproof battery lead.

Use a charged source battery, ideally with at least 1.5 times the capacity of the battery being charged. Check battery compatibility and follow the supplied connection instructions before use.

Three-year limited replacement warranty. Manufacturer part number: TM500. Product code: OPTDC.
